We can offer a full build and PDI service, which will increase shipping costs and will be done on a case by case system. If you want this option you should choose the local pickup option and you will be invoiced for the shipping later.
The Torpedo 'SE' model features a full size padded bucket style seat and full safety harness

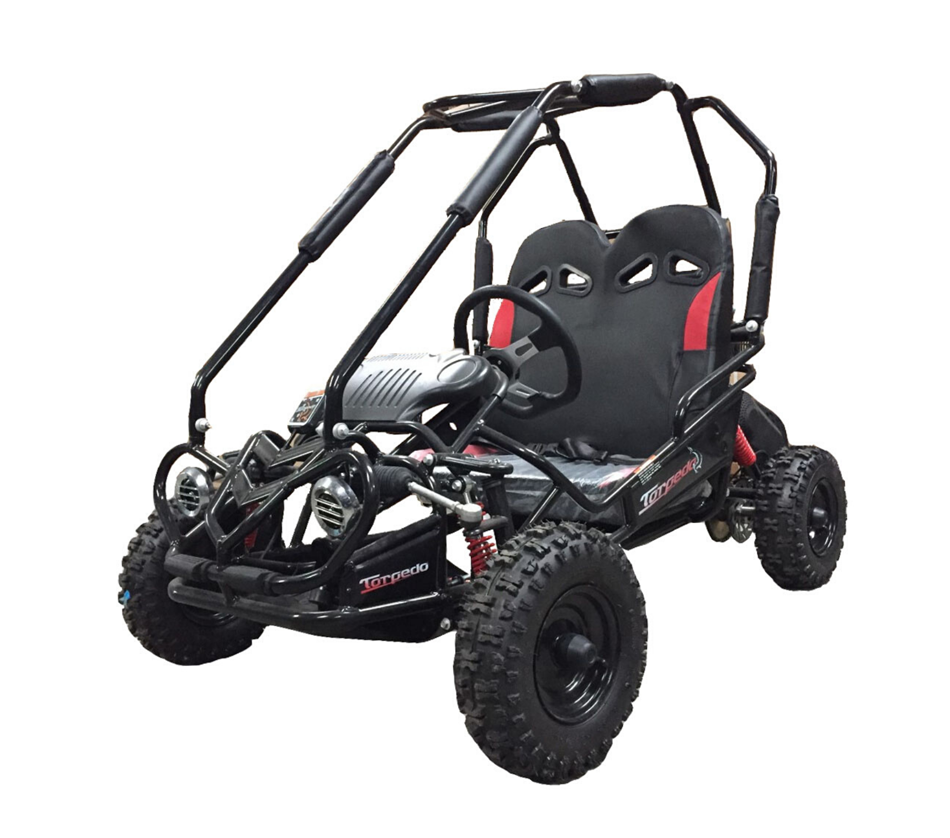

The Hammerhead Torpedo buggy is the entry level kids off road buggy from Hammerhead and an excellent machine to start kids with.
The beauty of this buggy is in its simplicity, the engine features a simple ‘rev & go’ operation and so even a complete newbie driver can soon get to grips with it! Parents need not worry about the kids driving off to the shops as the engine speed can easily be limited right down to a walking pace if required.
The drivers seat distance to the brake & throttle pedals is as follows -
Front of seat 45cm / Rear of seat 72cm
The Torpedo buggy comes fully equipped with a compact 136cc LCT (USA brand) engine with pull-start. Peace of mind comes from a 12 month engine warranty, backed and honored by LCT USA.
Key Features –
- Mini LCT USA brand GP engine
-
Fully automatic ‘rev & go’ CVT transmission
- CE approved and plated
- Padded seats and full safety harness
- Rear hydraulic brake
- Supplied with detailed owner’s manual
General Specifications
| WEIGHT | 82KG |
|---|---|
| GROUND CLEARANCE | 90MM |
| DIMENSIONS | LENGTH = 1580MM / WIDTH = 950MM / HEIGHT = 1160MM |
| SEATS / BELTS | FULL BUCKET SEAT / MULTI POINT HARNESS |
| FRAME / STEERING | QUALITY CHROMOLY FINISH / RACK & PINION |
| TYRES | FRONT = 13 X 6 – 3.5 / REAR = 13 X 6 – 5 (OFF ROAD PATTERN) |
| BRAKES | HYDRAULIC SINGLE CALIPER REAR / DRILLED DISC |
| WHEELS | BLACK COATED STEEL RIMS – 6” FRONT & 6” REAR |
| SUSPENSION | INDEPENDENT DOUBLE WISHBONE FRONT / SWING ARM – SOLID AXLE REAR |
| SHOCK ABSORBERS | INDEPENDENT SHOCKS – FRONT & REAR |
Engine & Transmission Specifications
| FINAL DRIVE | SOLID REAR AXLE |
|---|---|
| DRIVE | CHAIN DRIVE |
| TRANSMISSION | FULLY AUTOMATIC – TORQUE CONVERTOR |
| FUEL / CAPACITY | STANDARD 4 STROKE PETROL / 2.7L FUEL TANK CAPACITY |
| START / COOLING | PULL START / AIR COOLED |
| MAX TORQUE | 7 (GROSS, FT – LBS) |
| TOP SPEED / POWER | 15MPH+ / BHP TBC (AT FULL UNRESTRICTED SPEED / POWER) |
| MODEL | CMXX COMMERCOAL SERIES (EPA & CARB APPROVED) |
| MANUFACTURER | LCT (USA BRAND) |
| ENGINE | 136CC - GENERAL PURPOSE – OVER HEAD VALVE (OHV) |
