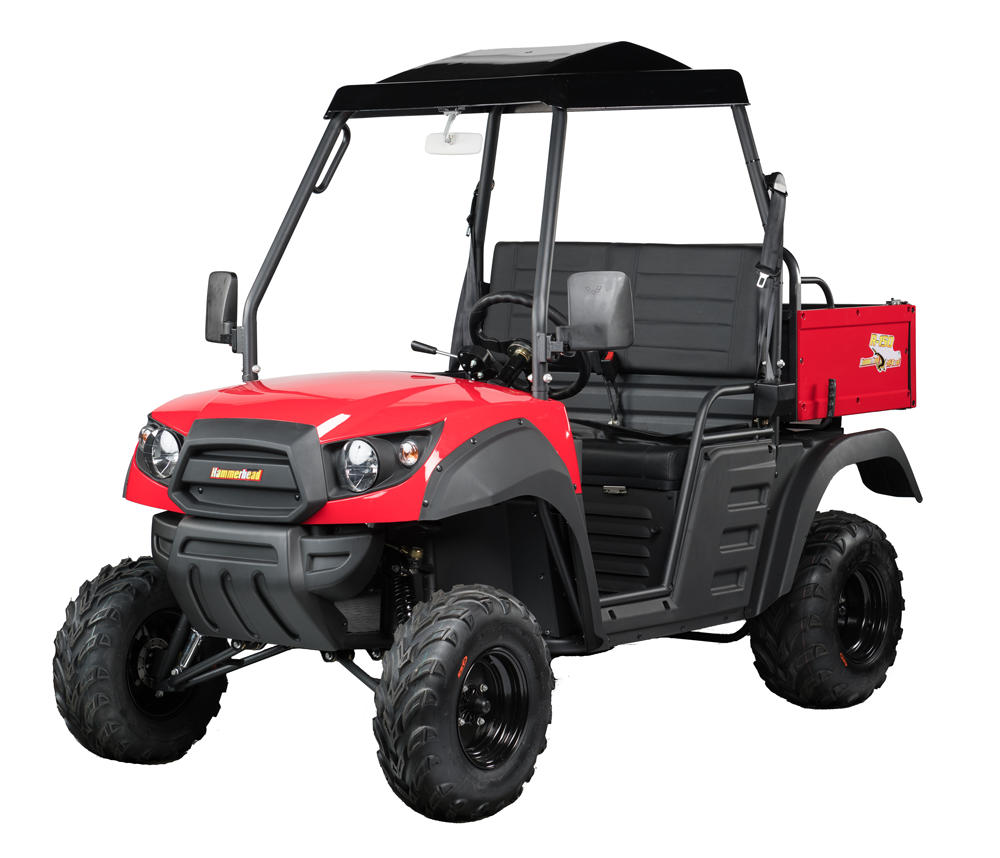

The Hammerhead R-150™UTV is our light-duty, two-wheel drive utility vehicle that is ideal for cruising around the lake house or doing maintenance around your property. The R-150™ features a stylish exterior, spacious interior, 115KG manual dump-bed, and 250KG towing capacity. There is not a more affordable UTV on the market with this much durability, quality and comfort. Currently, we are offering the R-150™ in Black, Blue, and Red.
Standard Features -
- Hard Top
- Dual Three Point Seat Belts
- Digital Speedometer
- 12V Auxillary Outlet
- Dump Bed
- Rear View Mirror
- Headlights
- Turn Signals & Tail Light
- Digital Display Gauge With Vehicle Travel Information
- Independant Rear Swing Arm For A Smoother Ride
General Specifications
| SHOCK ABSORBERS |
INDEPENDENT SHOCKS – FRONT & REAR |
| SUSPENSION |
INDEPENDENT DOUBLE WISHBONE FRONT / SWING ARM – SOLID AXLE REAR |
| WHEELS |
BLACK COATED STEEL RIMS – 8” FRONT & 10” REAR |
| BRAKES |
INDEPENDENT HYDRAULIC BRAKING / DRILLED DISCS |
| TYRES |
FRONT = 19 X 7– 8 / REAR = 22 X 10 – 10 (OFF ROAD PATTERN) |
| FRAME / BODY |
POWDER COATED QUALITY FINISH / AUTOMOTIVE STANDARD PLASTIC |
| STEERING |
RACK AND PINION |
| RACK AND PINION |
ONE PIECE PADDED BENCH CONTOUR SEAT / 3 POINT 2” SAFETY BELTS |
| DIMENSIONS |
LENGTH = 2311MM / WIDTH = 1295MM / HEIGHT = 1727MM |
| WHEELBASE |
1600MM |
| GROUND CLEARANCE |
220MM |
| WEIGHT |
317KG |
Engine & Transmission Specifications
| ENGINE |
149CC SINGLE CYLINDER – OVERHEAD CAMSHAFT |
| CARBURETOR |
LARGE BORE – EASY ACCESS - UPGRADED FOR EUROPEAN CUSTOMERS |
| MODEL |
GY6 (ORIGINALLY DEVELOPED BY HONDA FOR THEIR MOTORCYCLES) |
| TOP SPEED / POWER |
APPROX 25MPH+ / 9BHP (AT FULL UNRESTRICTED SPEED / POWER) |
| UPGRADE |
12V AUXILLARY OUTLET (FITTED AS STANDARD) |
| START / COOLING |
ELECTRIC START CDI / LIQUID COOLED |
| FUEL / CAPACITY |
STANDARD 4 STROKE PETROL / 9L FUEL TANK CAPACITY |
| TRANSMISSION |
FULLY AUTOMATIC WITH NEUTRAL & REVERSE |
| CVT DRIVE |
BELT |
| CLUTCH |
CVT (CONSTANTLY VARIABLE TRANSMISSION) DRY CLUTCH & VARIATOR |
| FINAL DRIVE |
CVT (CONSTANTLY VARIABLE TRANSMISSION) DRY CLUTCH & VARIATOR |
| DRIVE MOUNTING |
REAR SWING ARM WITH ADJUSTABLE COIL |
